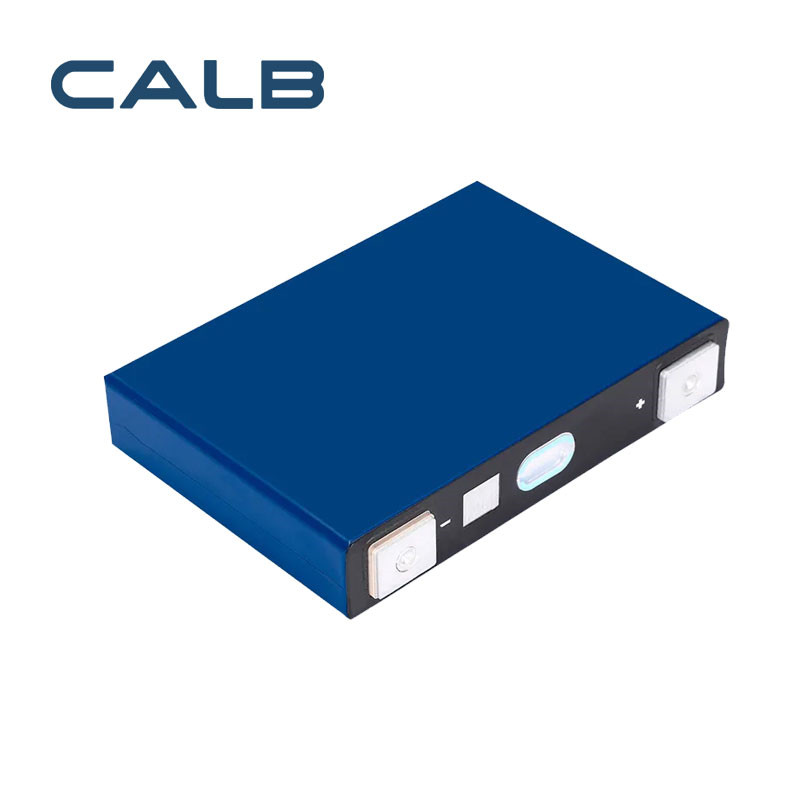

2023 CALB Brand L148N58A NCM 3.7v 58ah New Grade A Prismatic Lithium-ion Battery
-
High Consistency -
Famous Brand -
Slim Size -
High Energy
Prismatic NCM Cell
CALB prismatic ternary batteries are top quality Li-ion batteries with exceptional energy density. Since they can withstand many charge and discharge cycles, they have a long service life. These batteries provide high power output for demanding applications such as electric vehicles and renewable energy storage. Safety is a top priority, with built-in protection against overcharging and overheating. These batteries are also environmentally friendly, free of harmful metals, and have a low self-discharge rate. CALB prismatic ternary batteries provide reliable and efficient power solutions, making them ideal for numerous industries and promoting sustainable development.
Full Life Cycle Management
Battery life Cycle management
High Consistency of performance
Dimensional Standard
Meet a variety of
dimensional standards
Environmental Friendly
Passed environmental
system certification
Stability
Excellent performance in Low temperature
Good environmental adaptability
Long Life
long cycle life
Up To 2000 times
Ultra Safe
Explosion-proof, Anti-short circuit design
high safety performance

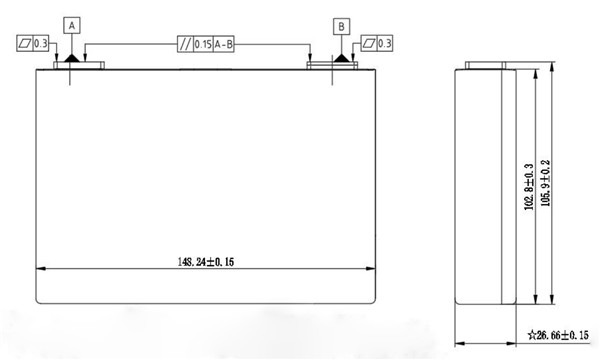

Size Diagram
Product Parameters
|
Brand |
CALB |
|
Model Number |
L148N58A |
|
Type |
NCM |
| Nominal Capacity | 58Ah@1C |
|
Typical Voltage |
3.7V |
| AC Internal Resistance |
0.6~0.8mΩ |
| Standard charge and dischargeCharge/Discharge Current |
0.5C/0.5C |
| Standard charge and discharge Charge/Discharge Cut-off Voltage | 4.35V/2.75V |
| Continuous Charge/Discharge Current | 1C/1C |
| Pulse Charge/Discharge Current (30s) | 2C/3C |
| Capability retention under room temperature | Capability retention≥94% |
| Maximum Pulse Discharging Current（Short Pulse） |
450A |
|
Recommended SOC window |
5%-97% |
|
Charging Working Temperature |
-20℃~55℃ |
|
Discharging Working Temperature |
-30℃~55℃ |
|
Size(W*T*H) |
148.24*26.66*105.9mm |
|
Weight |
926±20g |
| Shell Material | Aluminium alloy |
|
Cycle life |
≥2000 Times |
Electrical Performance Diagram
1.Thermal-Electrochemical Coupled Model
2.Total J/R and Stack Model
3.Charge and discharge curve: comparison of simulation and actual measurement accuracy
Package Diagram
Famous Brand Manufacturer
Production Line
Products Certificate
Power your future with CALB batteries - reliable passenger car NCM batteries solutions for all your needs.
Unlock the potential of clean and sustainable energy with CALB batteries - a cutting-edge solution that delivers exceptional performance, durability and efficiency. Whether you need power for electric vehicles, residential energy systems or industrial applications, CALB batteries guarantee unwavering reliability and superior power output. With its advanced technology and robust construction, CALB batteries ensure optimal energy storage, allowing you to maximize the benefits of renewable energy while minimizing your carbon footprint. Say goodbye to frequent charging and hello to longer charging cycles thanks to the long life and excellent charge retention of CALB batteries. Choose AVIC Battery and experience a new level of energy efficiency, cost-effectiveness and environmental responsibility. Embrace the future of energy with CALB batteries - the trusted choice for sustainable power solutions.
