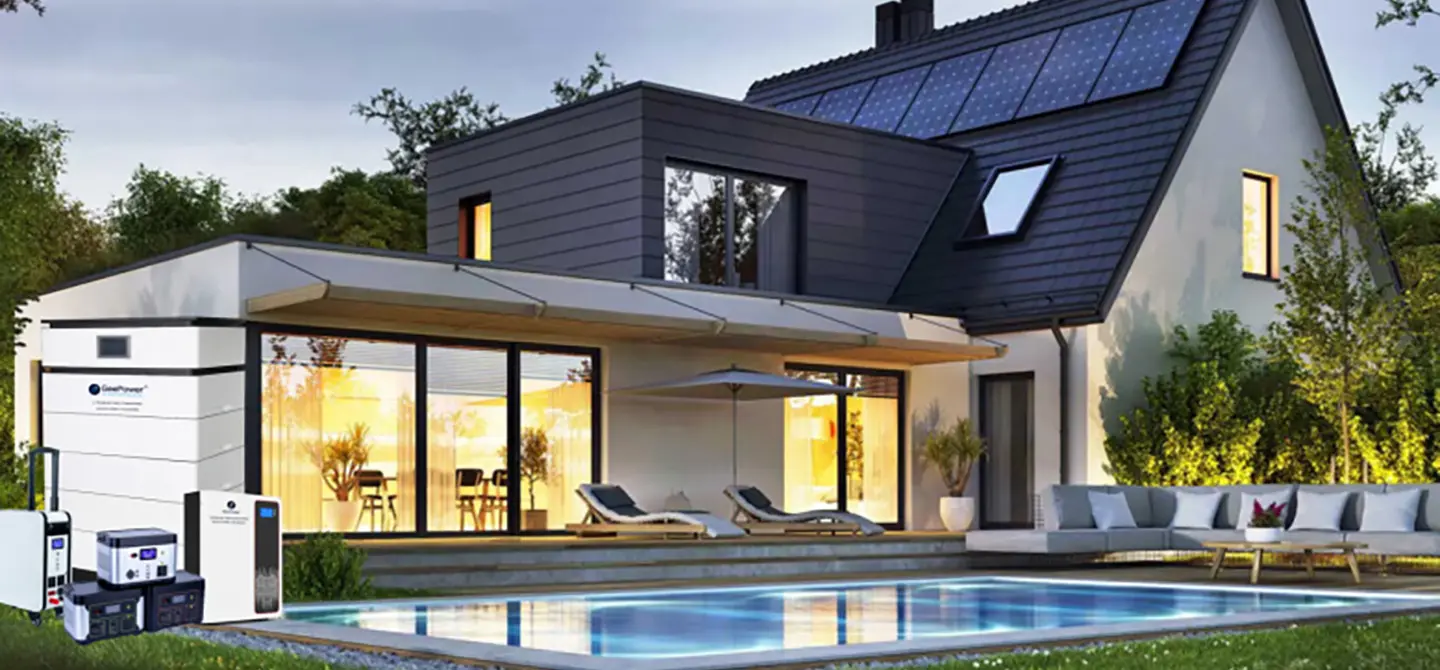

Home Energy Storage System

Home energy storage systems enable homeowners to harness excess renewable energy and utilize it during periods of high demand or when renewable sources are unavailable. These integrated solutions, typically comprising batteries or other storage devices, allow users to reduce grid dependence, enhance energy autonomy, and potentially realize cost savings.

By implementing a home energy storage system, homeowners can optimize their energy usage, becoming less reliant on the traditional power grid and benefiting from increased self-sufficiency. This technology represents a strategic step towards a more sustainable and cost-effective energy future for residential properties.




years design life

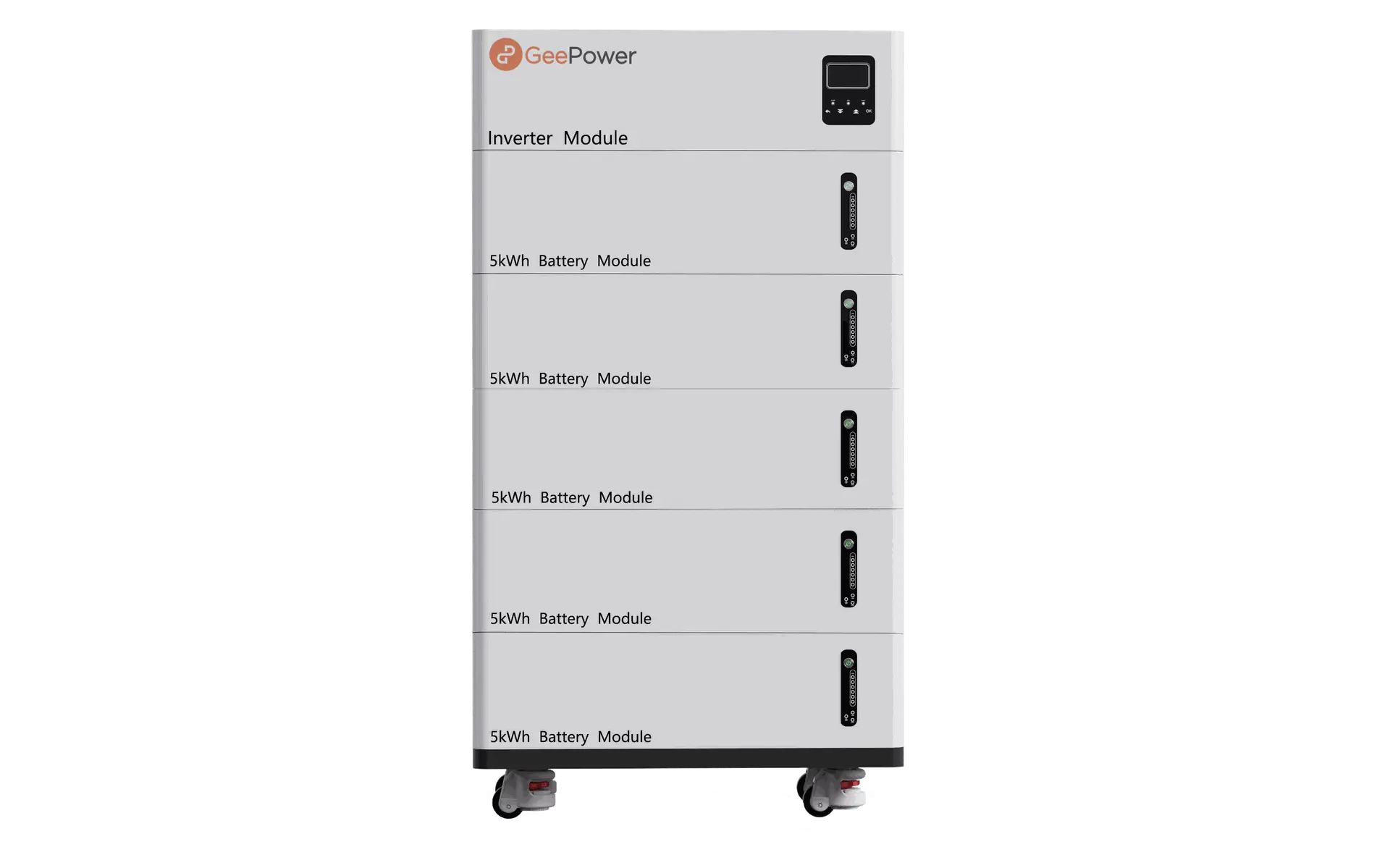

GeePower Energy Storage System(Pro)

5 years warranty

6000 times cycle Iife

Parameters

Item SPECIFICATION 5KWH 10KWH 15KWH 20KWH
INVERTER/ CHARGER Rated Output Power 6KW
Output Voltage Waveform Pure Sine Wave
Output Voltage 230VAC 50Hz
Total Charging Current 120A Max.
LITHIUM-ION BATTERY Normal Battery Modular 51.2V100Ah*1 51.2V100Ah*2 51.2V100Ah*3 51.2V100Ah*4
Normal Capacity 5120Wh 10.24KWh 15.36KWh 20.48KWh
AC INPUT Nominal Input Voltage 230Vac
AC Charging Current 120A  Max.
SOLAR INPUT Nominal PV Voltage 360Vdc
MPPT Voltage Range 120Vdc~450Vdc
Solar Charging Current 120A  Max.
AMBIENT Noise(dB) <40dB
Working Temperature -10℃~+50℃
Humidity 0~95%
Sea Level(m) ≤1500

Function




Off Grid

6KW

Pure Sine Wave


LiFePO4 Battery



Solar Charge

AC Charge

Lithium-ion Battery Pack

SPECIFICATION 5KWH 10KWH
Battery Type LiFePO4
Voltage range 44.8~58.4V
Energy 5.12kWh 10.24kWh
Max working current 150A
Max charge current 50A
Weight 56kg 109kg
Install Wall-mounted
Warranty 5 years
Life design 10 years
IP Protection IP 20

Off Grid MPPT Inverter

Item Description Parameter
Power Rated Output Power 6000VA 8000VA
INPUT Voltage range 170~280VAC;  90~280VAC
Frequency range 50/60Hz
SOLAR CHARGER /AC CHARGER Inverter Type MTTP
Operating Voltage 120~450VDC
Maximum Solar Charge Current 120A
Maximum AC Charge Current 100A
Max PV Array Power 6000W 4000W*2
OUTPUT Efficiency (Peak) 90~93%
Transfer Time 15~20ms
Waveform Pure Sine Wave
Surge Power 12000VA 16000VA
OTHERS Dimensions 115*300*400mm
Net Weight 10kg 18.4kg
Interface USB/RS232/RS485(BMS)/Local WiFi/Dry-contact
Humidity 5% to 95%
Operating Temperature -10°C to 50°C

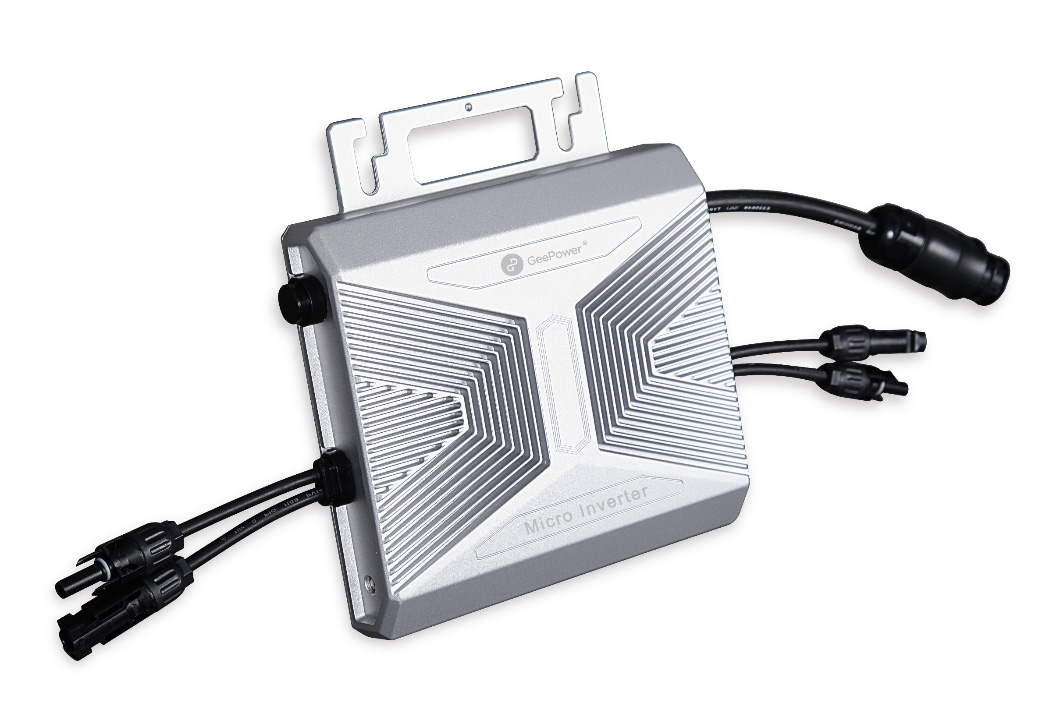

Micro Inverter


Individual MPPT Tracking


Remote WIFI Monitor

High Reliability



IP67


Parallel Operation

Easy Operation


ITEM SPECIFICATION 600M1 800M1 1000M1
INPUT (DC) Module power 210~455W

(2pcs)

 210~550W

(2pcs)

 210~600W

(2pcs)
MPPT voltage range 25~55V
Max input current(A) 2 x 13A
OUTPUT (DC) Rated output power 600W 800W 1000W
Rated output current 2.7A 3.6A 4.5A
Nominal output voltage range 180~275V
Frequency range 48~52Hz or 58~62Hz
Power factor > 0.99
Mechanical

Data

 Temperature range -40~65℃
IP rate IP67
Cooling Cooling Natural convection-No fans

Protect Our Mother Earth More Eco-Friendly

GeePower Lithium-ion batteries contain no toxic lead, acid or heavy metals,

and don't release explosivegases when charging. And it can effectively help reduce CO2 emissions.

Home Energy Solution

GeePower A name you can trust.

GeePower offers sustainable energy storage systems, catering to diverse industries.

Our products prioritize customer satisfaction, efficiency, and environmental conservation.

We have a highly skilled team delivering high performance and cost-effective solutions.

Our focus on R&D and innovative technologies helps us provide reliable, sustainable energy storage solutions.
