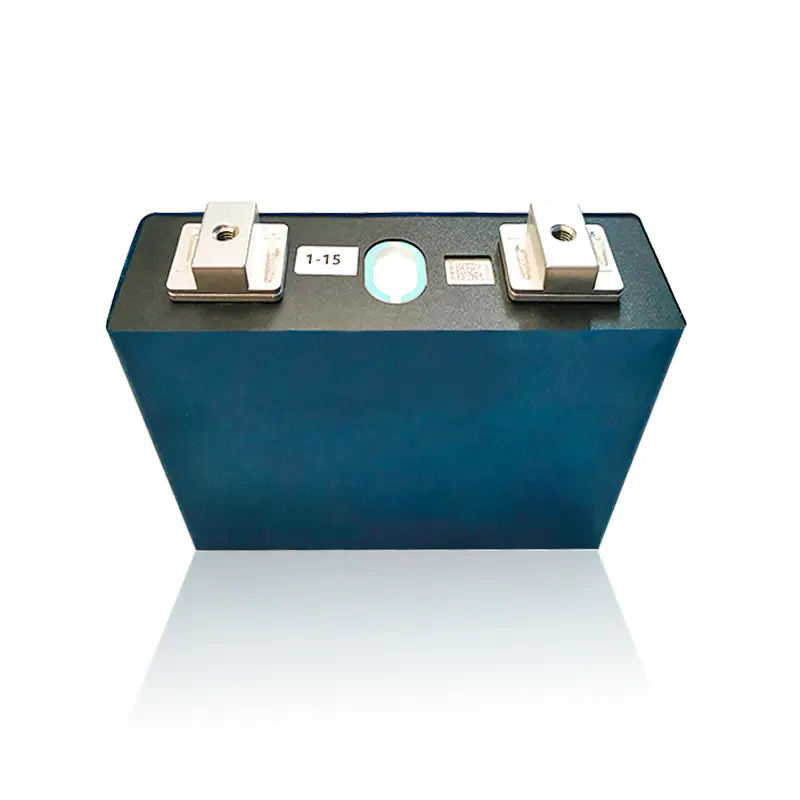

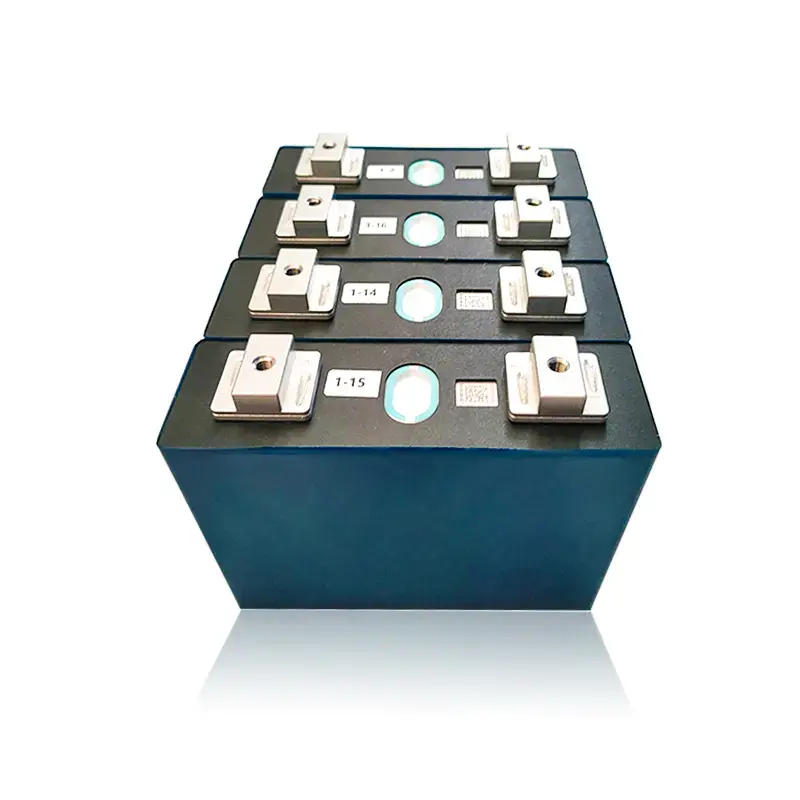

3.2V 306Ah High Performance Lithium Iron Phosphate Battery

https://www.geebattery.com/web/image/product.template/3437/image_1920?unique=a5ee8d2

In order to meet the needs of the large-scale energy storage market, we have developed and manufactured a series of lithium-ion battery products with different battery capacities. Under the condition of 0.5P constant power, the whole life cycle can exceed 15-20 years and more than 8,000 times.

info@geebattery.com

WhatsApp:+86 176 8065 2426

Wechat:+86 176 8065 2​426

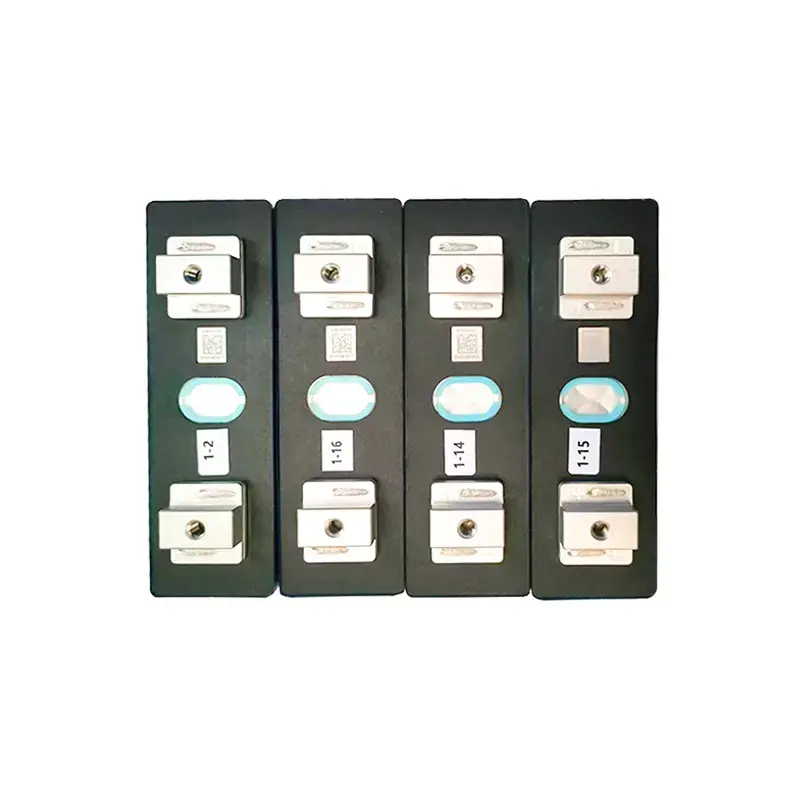

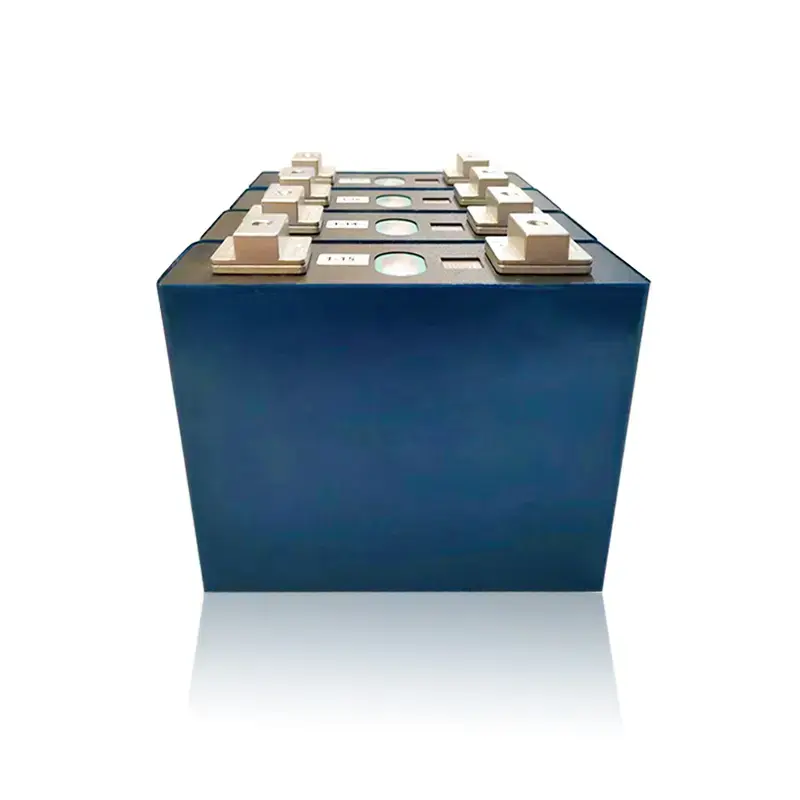

Prismatic LFP Cell

The advanced lithium iron phosphate material is used to construct the highly reliable porous electrode, which makes the electrons and ions move in a stable path, ensures the low expansion rate of the positive plate, and reduces the voltage polarization of the electrode. Special organic additives are added to the electrolyte to form SEl film with low impedance, good density and good flexibility to strengthen the protection of the negative electrode. The flexible and compact assembly design can automatically balance the local expansion stress of the cell, thus extending the cycle life. The world's innovative SCL technology, coupled with minimalist cover technology, helps to break through the bottleneck of battery technology and create high-quality, high consistency battery products.

Ultra-Safe

Explosion-proof/No Leakage

Automated

 production/Product Consistency

Stable

Low IR/High CR/Discharge Steadily

Super Long

Explosion-proof/No Leakage

Customized Custom-made

 production/Product Consistency

Environmentally Friendly

Passed environmental system certification

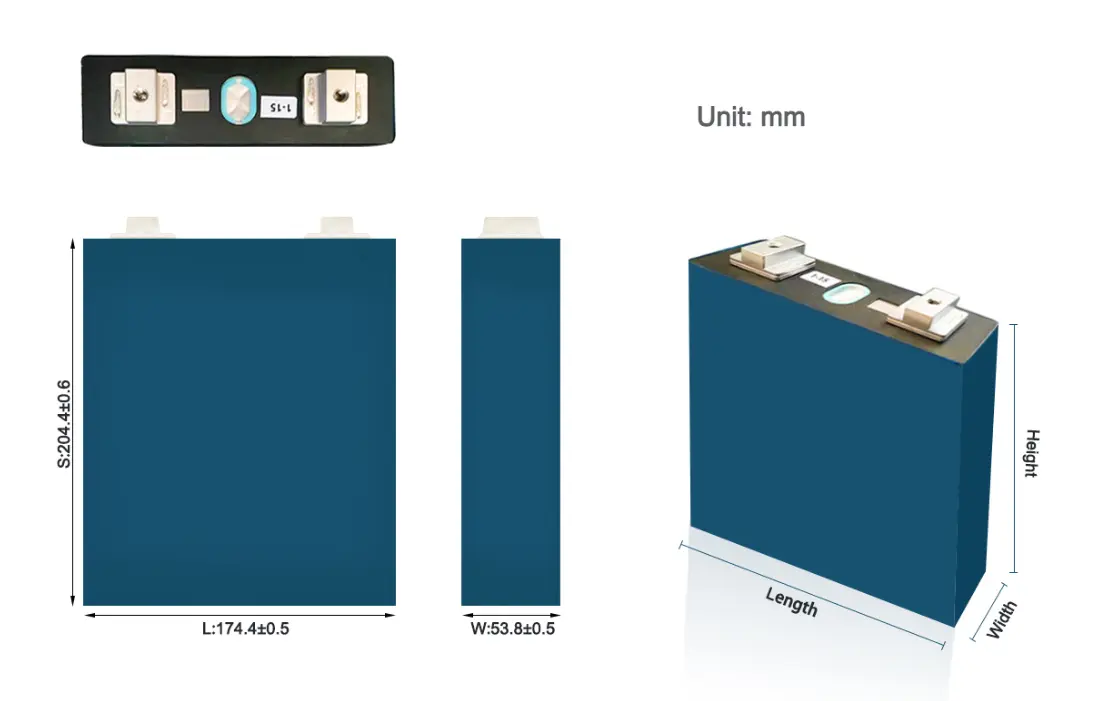

Size Diagram

Product Parameters

Ttem

Specification

Nominal Capacity

306Ah

Nominal Voltage

3.2V

Operating Voltage

2.0V-3.65V

Standard Discharging Current

153A

Maximum Continuous Discharging Current

306A

Maximum Discharging Current

612A

Standard Charging Current

153A

Maximum Continuous Charging Current

306A
Maximum Charging Current 612A

Operating Temperature

Charging-0℃~55℃;Discharging--30℃~60℃

Storage Tempercrature

-30℃~60℃

Cathode Material

LiFePO4

Cell Weight

About 5.55Kg

Energy Density

180Wh/kg

ACR (1KHz)

≤0.3mΩ

Size(L*W*H)

174mm*71.7mm*206.8mm

Cycle life

8000Times(25℃@1C/1C)

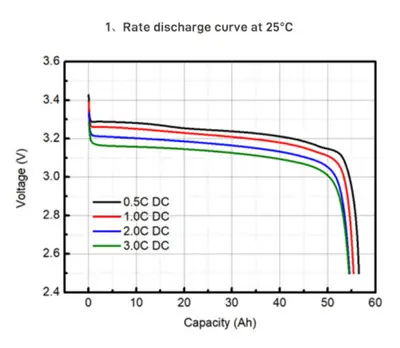

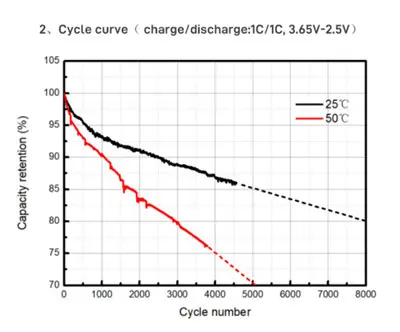

Electrical Performance Diagram

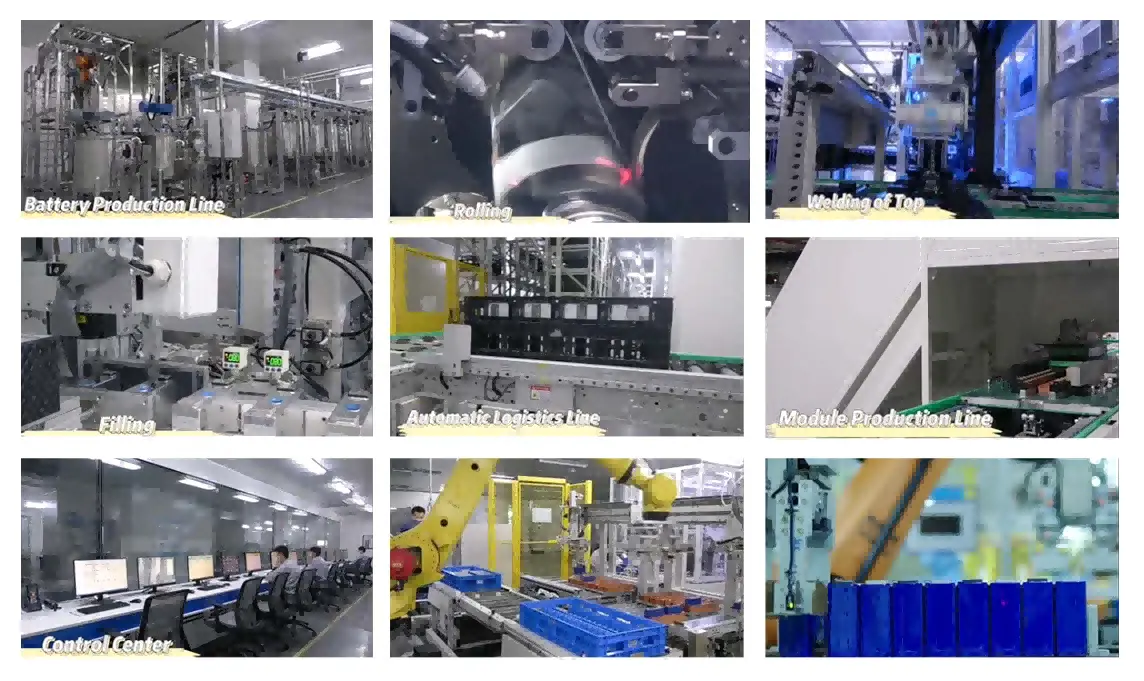

Production Line

Products Certificate

Widely Application

EVE Battery Cells: Empower Your World with Sustainable Energy!

In conclusion, EVE batteries are a trusted choice when powering a wide variety of devices and devices due to their superior performance, durability, and reliability. Whether you need batteries for personal electronics, automotive, industrial or other applications, EVE offers a comprehensive range of options to meet your specific power requirements. With cutting-edge technology and strict quality control measures, EVE batteries provide consistent and stable power output, ensuring uninterrupted operation and peak performance of your equipment. Trust EVE batteries to provide a long-lasting, high-efficiency power solution, making them ideal for everyday use and demanding applications. From smartphones to electric vehicles, EVE batteries are designed to deliver high-capacity, reliable power that meets the highest industry standards. Invest in EVE batteries and experience the convenience, peace of mind and performance that comes with choosing a reliable power solution.
